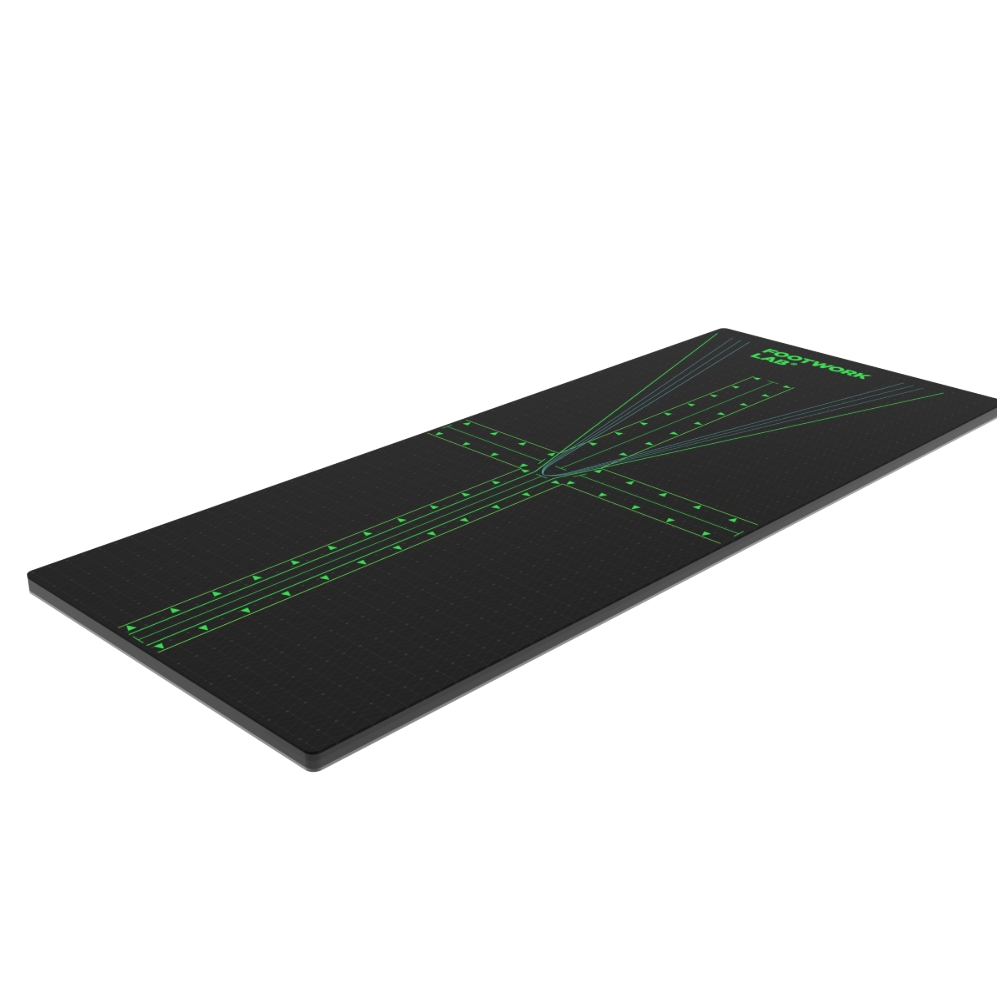

F2-Pro Gait Scanner
Foot pressure detection system - extended version
SCOPE OF APPLICATION
Static pressure detection and evaluation
Dynamic pressure detection and evaluation
Balance pressure detection and evaluation
PRODUCT INTRODUCTION
By collecting dynamic plantar pressure through a sensing and analysis system, foot deformities, rehabilitation, and exercise ability can be evaluated, providing quantitative basis for customized correction plans. F2-PRO Plantar Pressure System - Extended Edition, as an upgraded version of F2, collects and analyzes dynamic periodic plantar pressure distribution through pressure sensing instruments and dedicated analysis systems. Based on static and dynamic periodic gait and balance analysis, it can be used clinically for screening foot deformities, evaluating rehabilitation status, motor ability, and providing a quantitative basis for customized correction plans.
F2-Pro Gait Scanner
HostDimensions
120*47.5*1.9mm
Sensing area size
41*115.2cm
working voltage
5v
Weight
10.5kg
Collection frequency
60-100HZ
Number of pressurepoints
64*64*3
Dynamic pressure collection and intelligent analysis upgrade

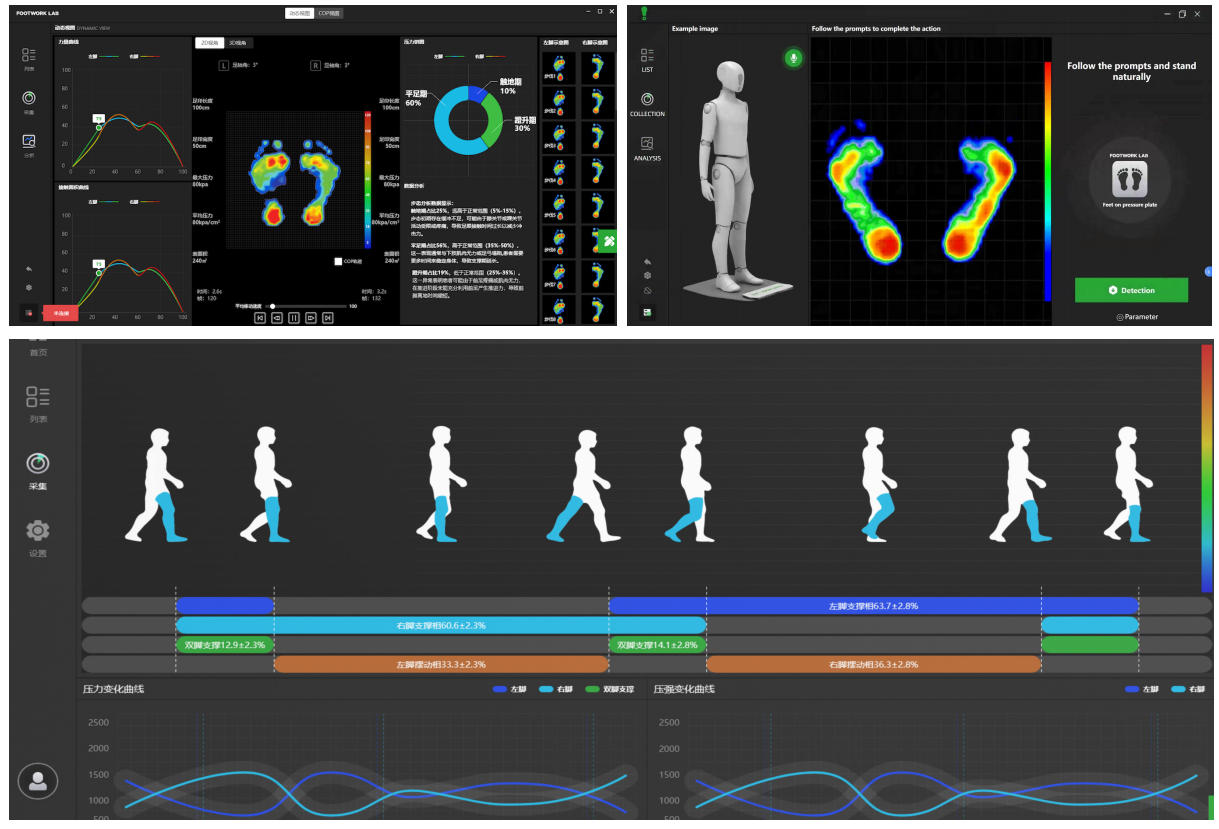

F2-PRO is an upgraded version of F2, equipped with professional pressure sensing instruments and analysis systems, focusing on dynamic periodic plantar pressure collection. By using high-sensitivity sensors to cover walking, sports, and other scenes, continuous data on pressure distribution can be captured in real-time; Cooperate with algorithms to quickly generate pressure maps, providing a technical foundation for quantitative analysis.
Ankle Health Database and AI Analysis Platform
F2-PRO uses multi-dimensional detection technology to comprehensively cover foot function scenarios: it can identify foot deformities (such as flat feet) in daily situations; Track pressure changes during movement and evaluate gait symmetry; Monitor pressure distribution during stable posture to assist in determining lower limb stability. Multi dimensional data provides a three-dimensional reference for accurate diagnosis.
Data support correction and functional optimization
F2-PRO provides support for clinical and sports scenarios through objective data: in clinical practice, doctors customize orthopedic insoles or rehabilitation plans based on pressure reports; During exercise, athletes compare data before and after training to adjust their movement patterns, optimize functions, and reduce the risk of injury. The traceability of data improves the scientific nature of the plan.
