3D arch support is a phrase that sounds like a hardware promise and is usually a design-file conversation. What makes one pair of insoles fit an arch better than another is rarely the machine that captured it; it is how the arch is described — height, width, length, position — in the specification that a designer reviews and a production line forms.
Buyers arrive with the phrase expecting a technology decision and leave, if the conversation is honest, holding a documentation decision: what does the file say about this arch, who wrote it, who checked it, and what tolerances were agreed. Those four questions predict the fit of the finished pair better than any list of machinery.
This article opens the design file: what an arch looks like as data, why two pairs produced from the same file rarely match exactly, which tolerances belong in writing, and how the capture, the design review and the production checks divide the work. We produce made-to-measure insoles on our own line, so the file described here is the one our orders actually carry.

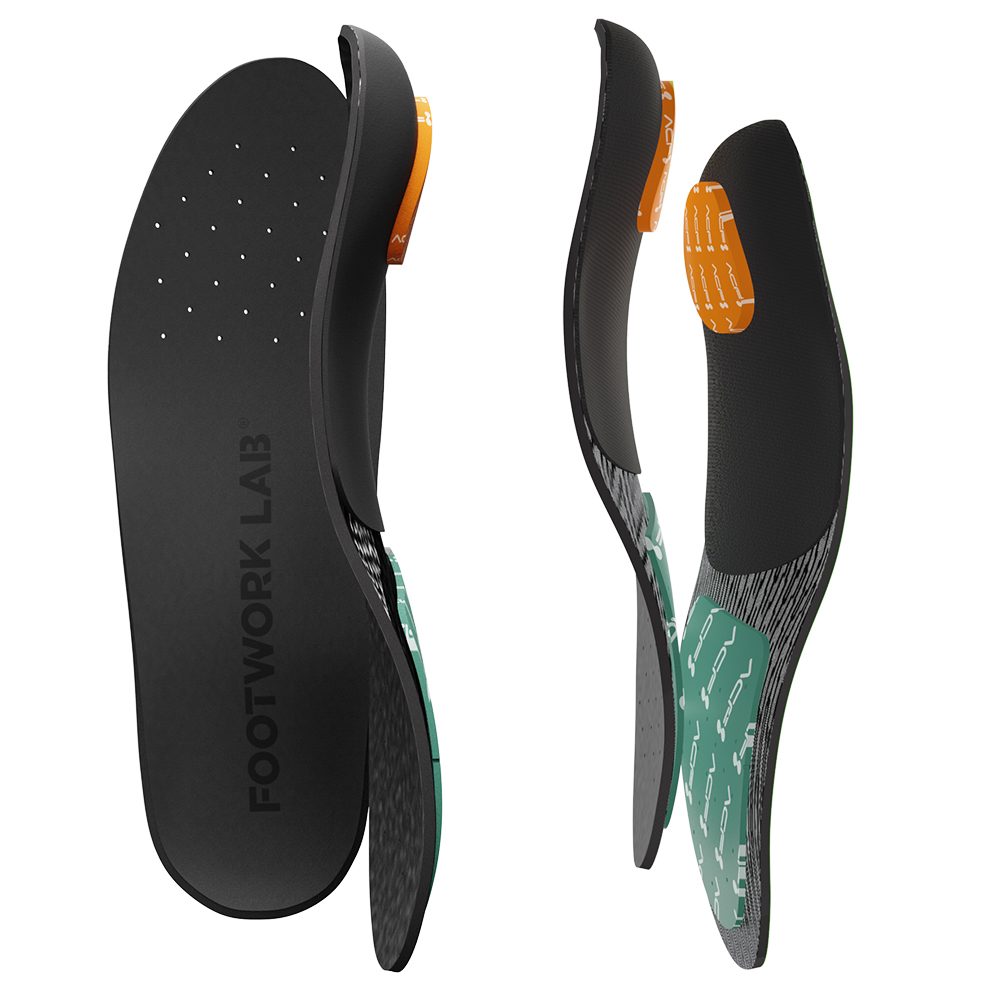

What an arch looks like in a design file
An arch in a design file is not a shape; it is a set of decisions expressed in numbers and curves. Height — how far the support rises under the arch region. Width — how much of the foot’s width the support engages. Length — where it begins behind the ball of the foot and where it ends before the heel. Position — how it sits relative to this foot’s actual anatomy, not to a template’s.
Around those four live the supporting decisions: the transition curves where the support blends into the body of the insole, the depth of the heel cup it meets, the stiffness of the material that will hold it, and the thickness budget the shoe allows. Change any one and the same nominal height feels like a different product.
This is why the file, not the machine, is the product’s DNA. Two captures can feed the same design; one capture can feed two designs aimed at different duties. The technology conversation — how the measurement was taken — matters, but it is the front door, not the house.
And it is why a serious order talks in fields: the buyer who specifies height band, engagement width and duty gets a pair that can be checked against a specification. The buyer who says comfortable gets a pair that can only be compared to a feeling.
Where the numbers come from
The measurement layer: a pressure record shows how this foot loads — where the arch region contacts, how the medial side shares the total, in stance and, where the workflow includes it, in motion. The alignment capture shows how the foot and leg line up. Together they ground the design in the foot as it is, not as a template imagines it.
The context layer: the shoe it will live in, with its footbed and thickness budget; the duty it will serve, in hours and surfaces; the client’s history and preferences as the professional records them. None of this is in the pressure map, and all of it changes the arch decisions — the same measured arch asks for different geometry in a dress shoe and a work boot.
The design layer: a person with experience turns measurement plus context into the four arch decisions and the supporting set. Software proposes; the review decides. The reviewer is checking whether the proposal respects the measurement, the shoe and the duty at once — the step that separates a produced pair from a printed one.
So when the phrase 3D arch support appears in a supplier’s materials, the useful question is not what machine do you use but what does your file contain and who reviews it. Suppliers who can show a sample order file are showing you their real product.
Why two pairs rarely match exactly
Production forms material, and material has character: foams compress slightly at forming, shells spring back after moulding, bonded layers settle. Two pairs from the same design, formed on the same day, will differ at the edges of their tolerances — a fraction of a degree of curve, a hair of thickness. This is normal manufacturing, not carelessness.
The reason it surprises buyers is that retail goods hide variance behind size bands, while a made-to-measure pair invites comparison against a feeling. A customer who loved pair one and receives pair two notices the difference that pair two’s tolerances produced — even though both sit inside the agreed specification.
Tolerances are the honest answer: state them in writing — height band, thickness band, allowed variation in the transition curves — and variance stops being a dispute and becomes a specification. Factories committed to process control quote tolerances willingly; the request itself is a quality filter.
The remaining variance that tolerances cannot absorb is the foot’s own variance: the same person measured on two days, at different fatigue, in different socks, produces two slightly different inputs. Design review absorbs this by aiming the specification at the foot’s stable features rather than its daily weather — one more reason the review is a person, not a pipeline.
Which tolerances belong in writing

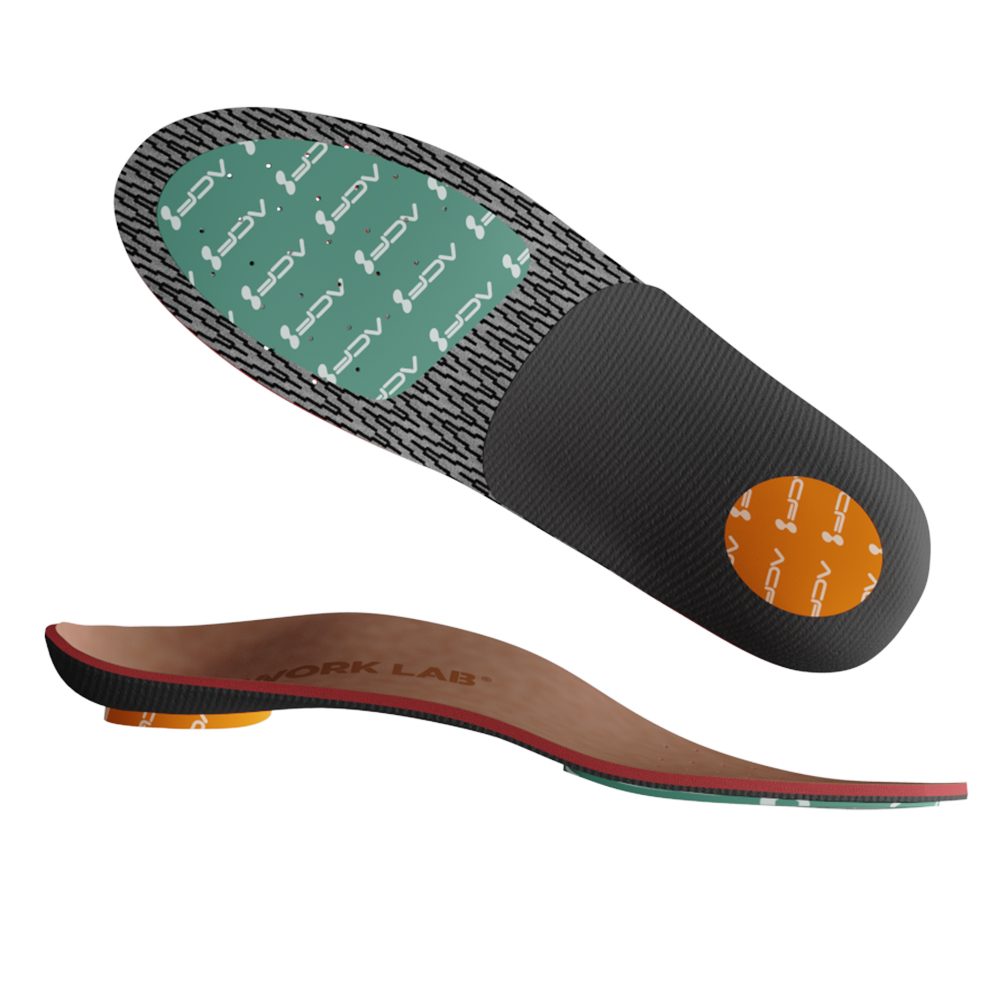

Height: the support region’s peak and its band — high, mid, low, expressed as a band the production must land inside. Thickness: total and at critical zones, because the shoe’s budget is unforgiving. Width of engagement: how far medially and laterally the support reaches, since over-engagement is the classic cause of a support that fights the shoe.
Position: where the support’s front edge sits relative to the metatarsal region and where it dies into the heel cup. Position errors are the most common reason a well-sized arch feels wrong — the height is right, but it arrives a centimetre early or late.
Material and stiffness family: the shell that holds the geometry, named precisely enough that a remake reproduces it. And the checks: what is measured on the finished pair, by whom, against what. A specification without a check is a wish with a signature.
None of this needs engineering vocabulary on the buyer’s side. It needs the supplier’s willingness to write the bands down. The document costs nothing to produce and settles, in advance, most of the conversations that otherwise happen after delivery with tempers attached.
A note on how the file handles the foot’s asymmetry, because every foot has some and the file is where it becomes design: most specifications read the two feet as related but separate documents, each with its own arch decisions. Buyers sometimes assume a pair shares one arch spec; the honest workflows specify each side from its own measurement, and where the sides differ meaningfully, the file says so. When your supplier’s sample arrives, ask whether the two feet were specified separately — the answer is a quick test of whether a review step actually happened or whether a mirrored template did the thinking.
How production checks the geometry
At forming: the shell is moulded to the design, and the first articles of a batch are measured against the specification before the batch continues. Sampling early catches a die or programme drift while it is still cheap; catching it after five hundred pairs is archaeology.
At finishing: height and thickness are checked at the defined points, and the pair is compared against the approved sample. Where the order includes mixed models and sizes — our minimum of two hundred pairs allows mixing — the checks run per model, because each model is its own geometry.
The review loop closes with the buyer on the first order: samples ship within three days, the buyer tests them in the target shoe under real use, and the feedback enters the file before volume production. A sample tested that way is not a courtesy; it is the calibration run for the whole batch.
And at remakes: the file, the tolerances and the checks are why a remake reproduces rather than improvises. A production line without the document remakes by memory, and memory is how the second disappointment arrives.
What this means for buyers
Ask for the file, or at least the fields: height band, engagement, position, thickness budget, material family, the checks. A supplier who produces made-to-measure work has these in every order; the request costs them nothing and tells them you are a buyer who checks.
Expect small variance and ask for the tolerances that make it legible. The buyer who says I know two pairs differ slightly — what band do you hold? gets a straight answer from a straight factory and a deflection from the rest.
Judge the capture fairly but proportionately: a good measurement matters, and it is the front door. The house is the design review and the production discipline behind it. Visit the factory if you can — ours receives buyers, and the walk from the review desk to the forming line is the most persuasive document we own.
And keep the boundary the file itself keeps: the arch described in the data supports and redistributes load; what the body does with that support belongs to the person and their professional. A file that promises outcomes has left engineering for advertising, and the pair inside it usually follows.
The checks have a version worth asking about: photographic. A check that is written is auditable; a check that is photographed is auditable by someone who was not there. Factories that photograph the finished pair against the specification build a habit that survives disputes, because the photograph settles what memory cannot. Our line photographs at the defined check points, and we recommend buyers ask for the photos with the first batch — not as distrust, but as the documentation habit that makes every later conversation shorter.
The phrase, used honestly
Three-dimensional arch support, read generously, means the support geometry is described and produced as a shaped object rather than a flat print — and by that standard, any made-to-measure workflow with a reviewed design file qualifies, whatever hardware sits at the front of it.
Read cynically, the phrase is a way to sell machinery as if the machine decided the fit. It does not. The machine measures; the file decides; the review checks; the line holds the tolerances. Buyers who track the decision to the file buy better pairs and waste fewer demos.
We use the vocabulary carefully for the same reason we describe our capture systems as pressure and posture systems rather than by the market’s scanner words: the words are the first specification the buyer receives, and a supplier who is loose there will be loose later.
So bring the phrase to your next supplier conversation, then improve it: ask to see the file behind a finished pair, the tolerances it holds, and the check that verified it. The supplier who shows you all three is showing you the product. Everything else is the box.
A final note on the word digital, which orbits this topic as loosely as the scanning words do: digital describes where the geometry lives, not how it got there or how it was made. A template adjusted by hand can be digitised; a file from a capture can be formed by hand. The digital-ness that matters to the buyer is the chain of custody — the measurement, the design decisions, the review, the checks, each carrying the previous one forward without translation loss. That chain, not the software, is what the phrase 3D arch support should be allowed to mean.
Frequently asked questions
Does 3D arch support mean the insole is made by a 3D scanner?
Not necessarily. The phrase describes shaped support geometry — height, width, length and position defined in a design file. The measurement may come from pressure records, posture capture or dimensions; what predicts the fit is the file and the review, not the hardware label.
Why do two custom pairs from the same file differ slightly?
Forming has tolerances: materials spring, settle and vary within bands. Serious suppliers state those bands in writing — height, thickness, engagement — so variance stays inside a specification instead of becoming a dispute.
What tolerances should I ask for?
Height band of the support region, total and critical-zone thickness, engagement width, and the position of the support’s front edge — plus which checks run on the finished pair. The list costs the supplier nothing to write and filters quality better than any certificate.
Can we send our own measurement files?
Yes. Records exported in standard formats, plus the context notes — shoe, duty, hours — form the specification. The design is reviewed for the individual foot before forming, and samples ship within three days.
What is your minimum order?
Two hundred pairs, mixed across models and sizes — each model checked against its own geometry. The mixing rule exists so the order can match your actual customer base.
Do you produce under our brand?
Yes — insoles are available as ODM and OEM, with design, branding and packaging scope agreed in writing before production.
Can we visit the factory?
Yes. We are the manufacturer — founded in 2014, with our own plant in Ruichang since 2018 — and buyers are welcome to walk the line from review desk to forming. Ask for the visit when the sample conversation starts.
What we would do next
At your next supplier conversation, ask for the file behind a finished pair — fields, tolerances, checks. The answer ranks suppliers faster than a demo day. Our production terms and ranges are here: Insole Categories.
For how the measurement at the front of the chain becomes that file, our article on how a pressure map becomes a pair of supports walks the distance in one read.
This article is intended for professional and educational reference. It is not medical advice. Foot assessment equipment produces measurements and images; clinical interpretation and any decision about care remain the responsibility of a qualified professional. Certification scope is limited to the documentation we hold: European Union certification and ISO quality system certification.
